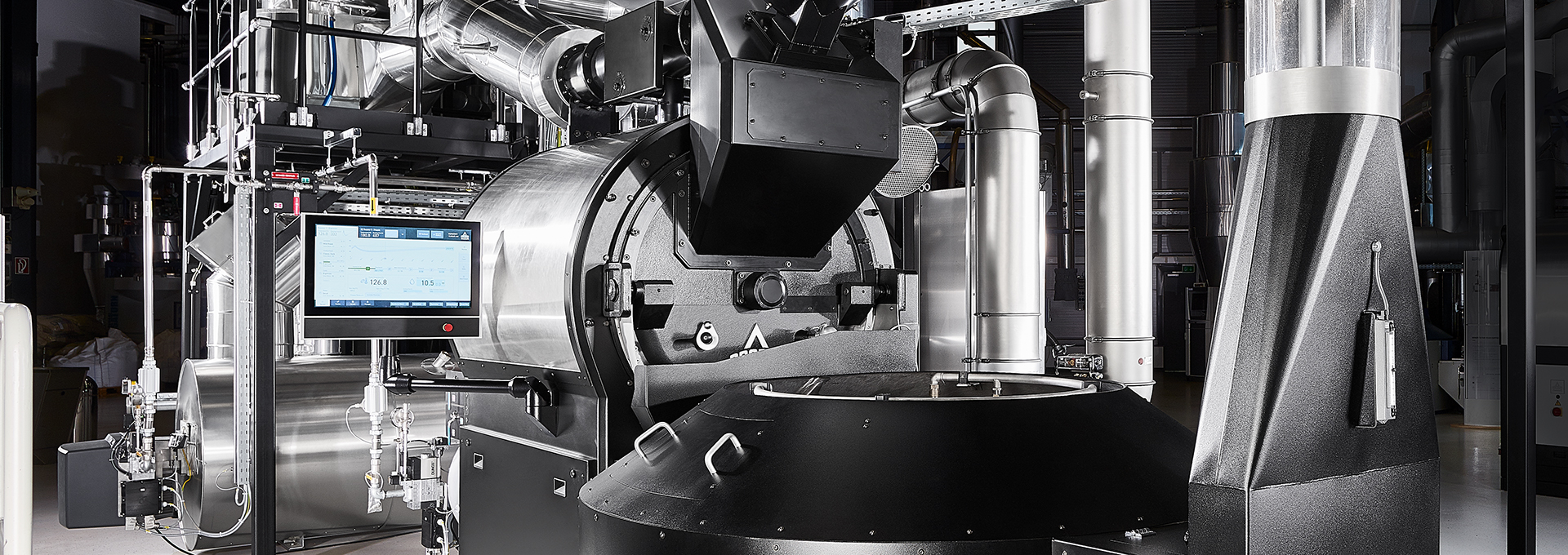

Px 120
DRUM ROASTER

In a class of its own

The all new Px 120 drum roaster is a unique fusion between cutting-edge engineering and classic design. Almost 80% of the machine components are completely new developed. All parts are available as 3D data with which a full virtual plant can be created.

By means of CFD (Computational Fluid Dynamics) analytics the roasting system has been optimized to increase coffee quality and energy efficiency. The forward-thinking new partial recirculation system significantly reduces energy consumption. A high-efficiency cyclone with optimized flow processes ensures an effective chaff separation and fast and clean disposal. The trailblazing intuitive control solution guarantees highly efficient processes, increased quality and productivity.

The drum roasting process in detail

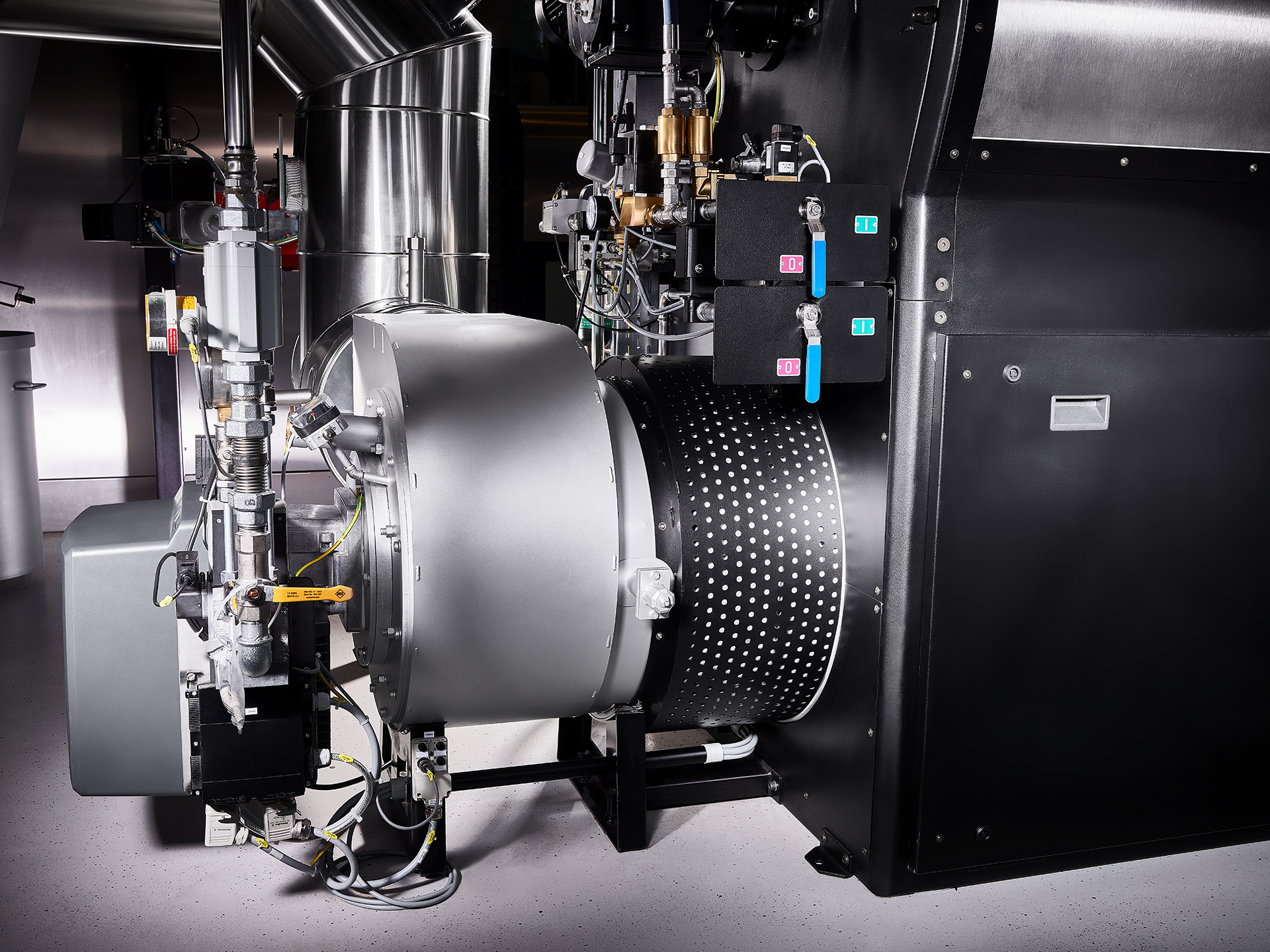

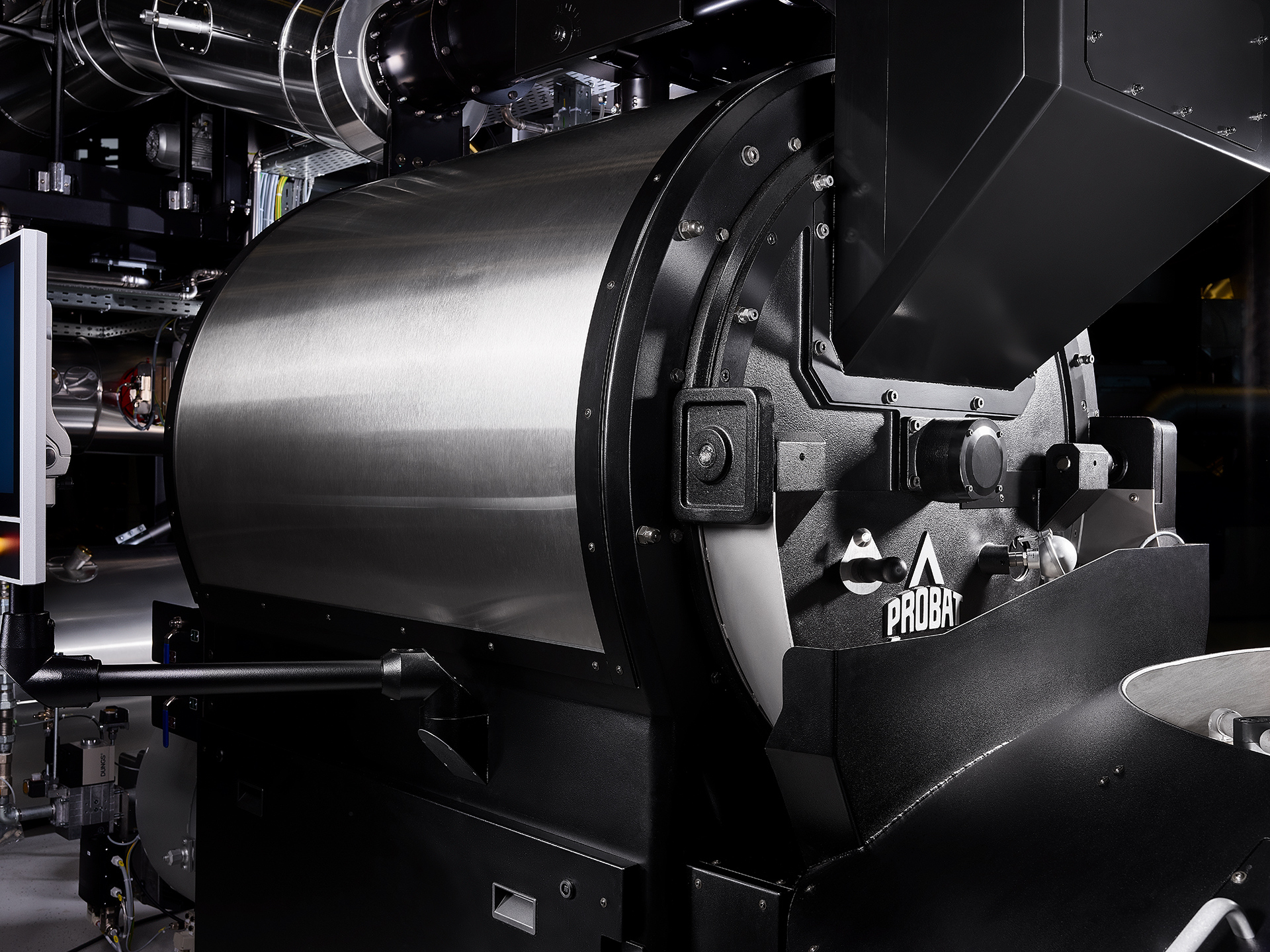

The heart of PROBAT’s Px 120 drum roaster is a horizontally lying roasting drum which is equipped with a rotary drive. Shovel blades circulate the coffee beans during the roasting process. The flame of a burner generates the energy for the roasting air which is guided both through as well as around the roasting drum by means of flaps. As such, heat is applied through conduction via the bean’s contact with the roasting drum as well as through convection via the hot incoming air.

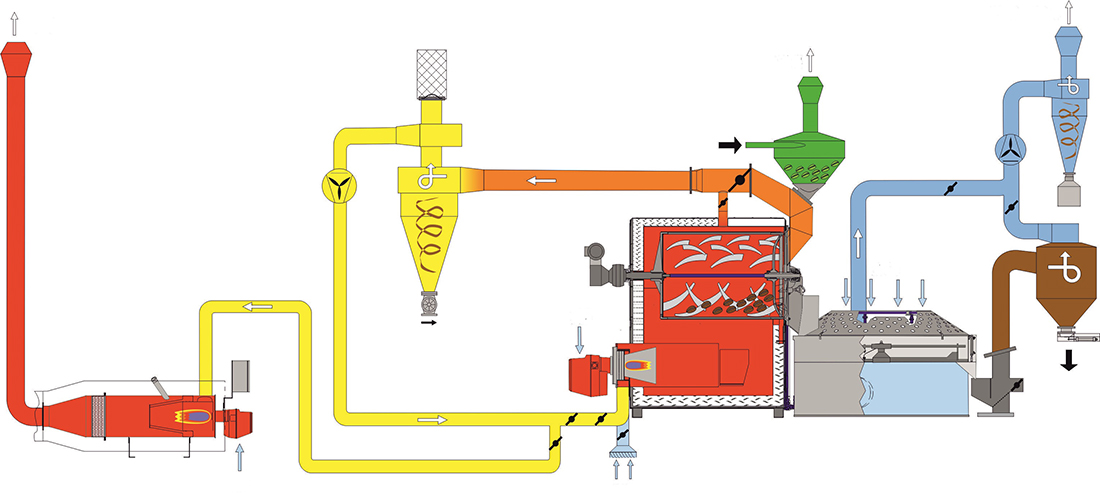

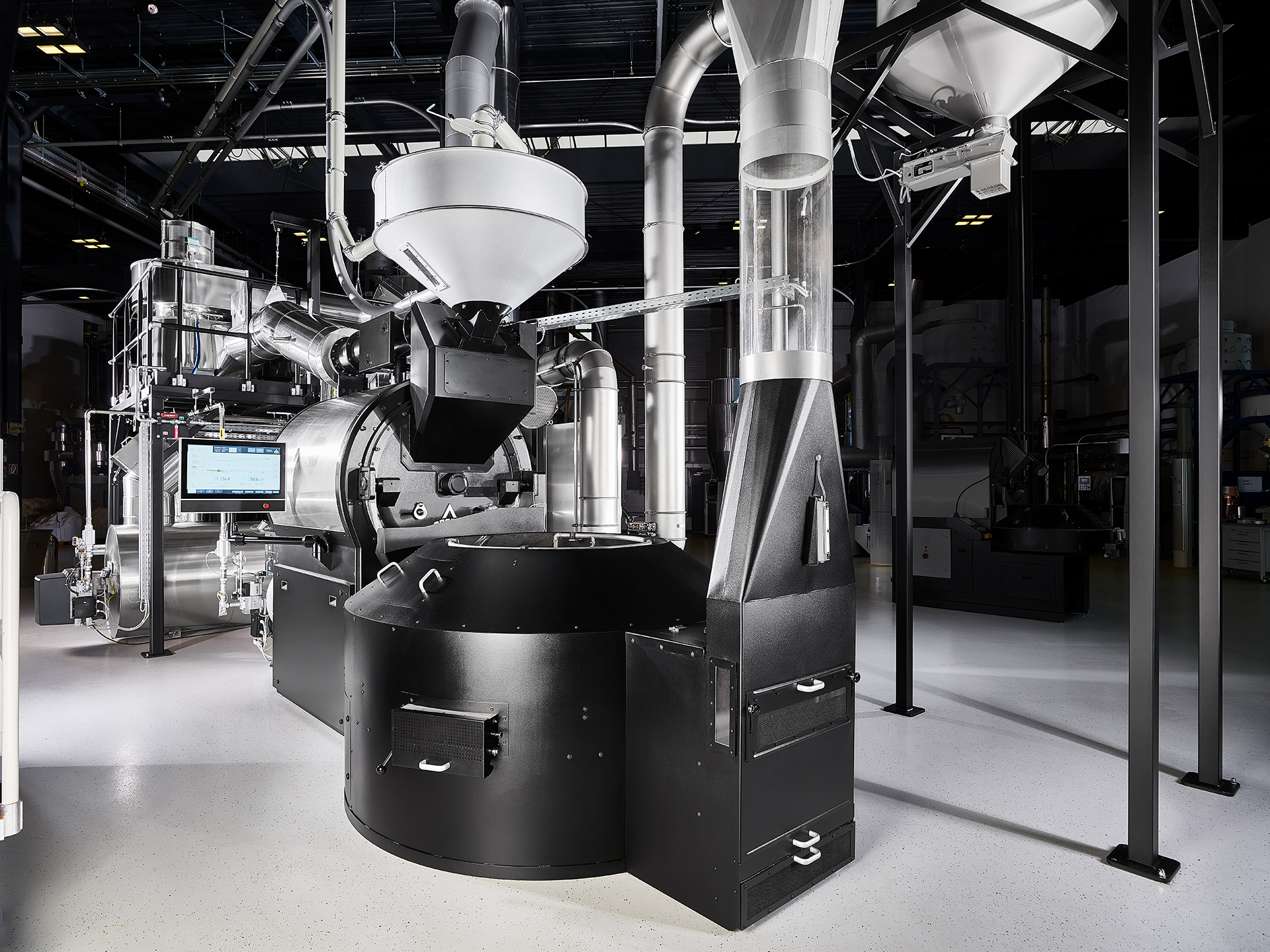

Px 120 DRUM ROASTER WITH PARTIAL RECIRCULATION AND EXHAUST AIR TREATMENT

Benefits for your coffee

With an extended batch size range between 60 and 120 kg and roasting times between 6 and 20 minutes, the Px 120 drum roaster guarantees more flexibility while maintaining a constantly high coffee quality. The Px 120 roaster offers this and many other benefits:

Reduced exhaust air volume due to partially recirculating system

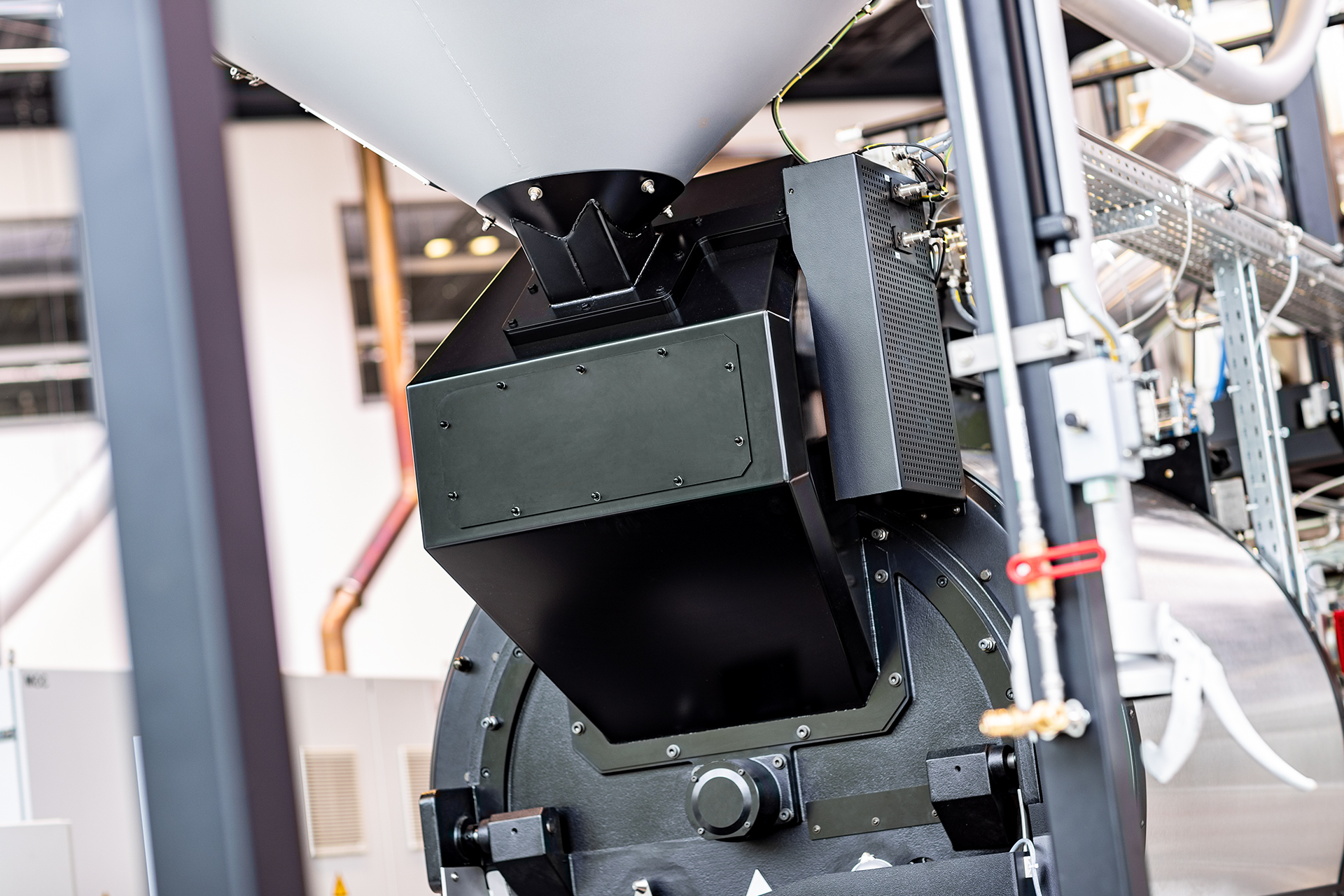

Fewer deposits due to optimzed feed hopper
Optimized chaff separation, less dust deposits and increased cleaning results due to high-efficiency cyclone
Lower energy consumption and more flexibility due to frequency converters for all drives as standard
Increased roasting quality through optimized drum geometry
Increased flexibility through extended batch size range

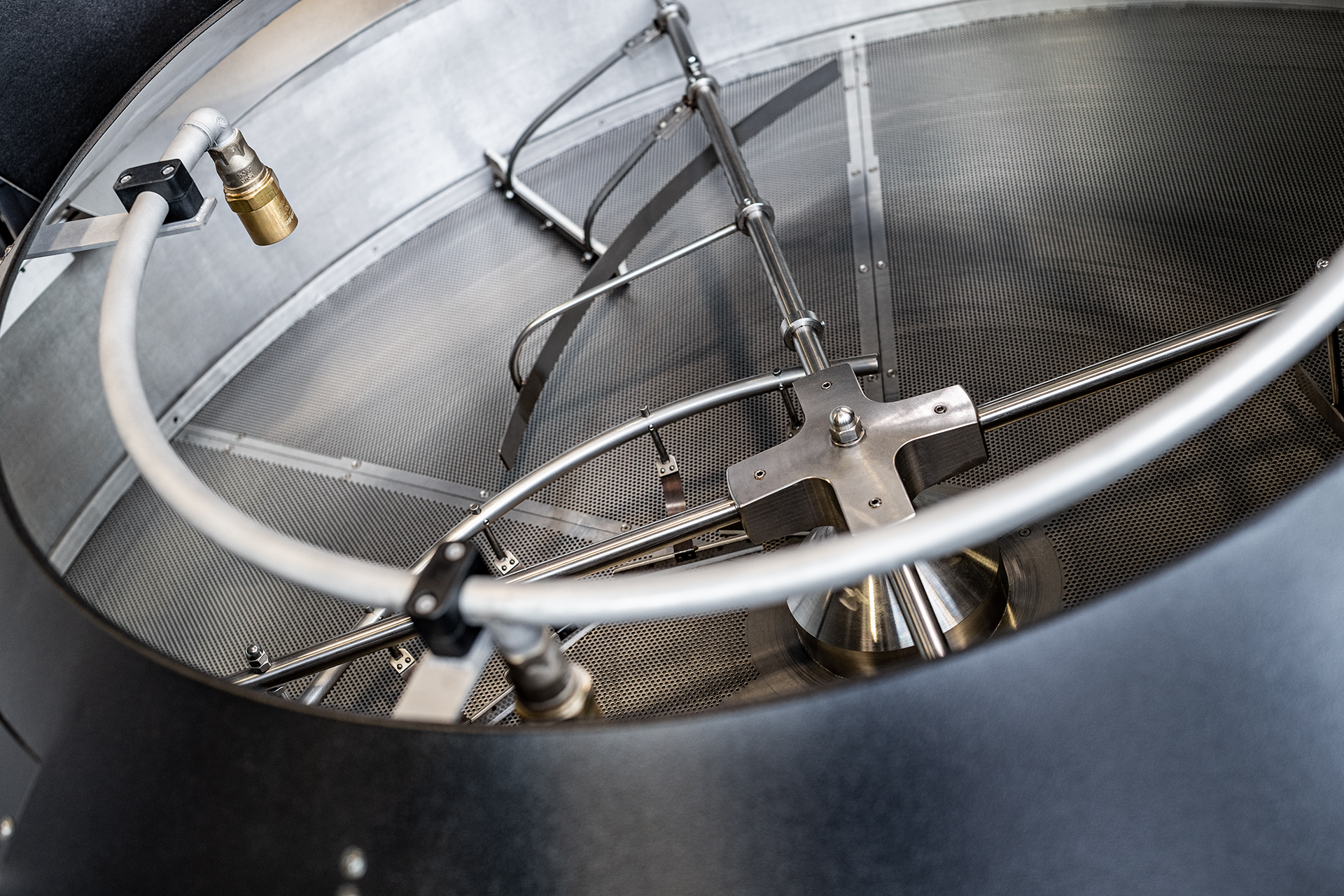

Increased cooling performance

Performance Data

Px 120

Roasting times (min)

6-20

Roasting capacity (kg/h)

480

Batch size (kg)

60-120

» FAQ: Alternative Heating Solutions

Control

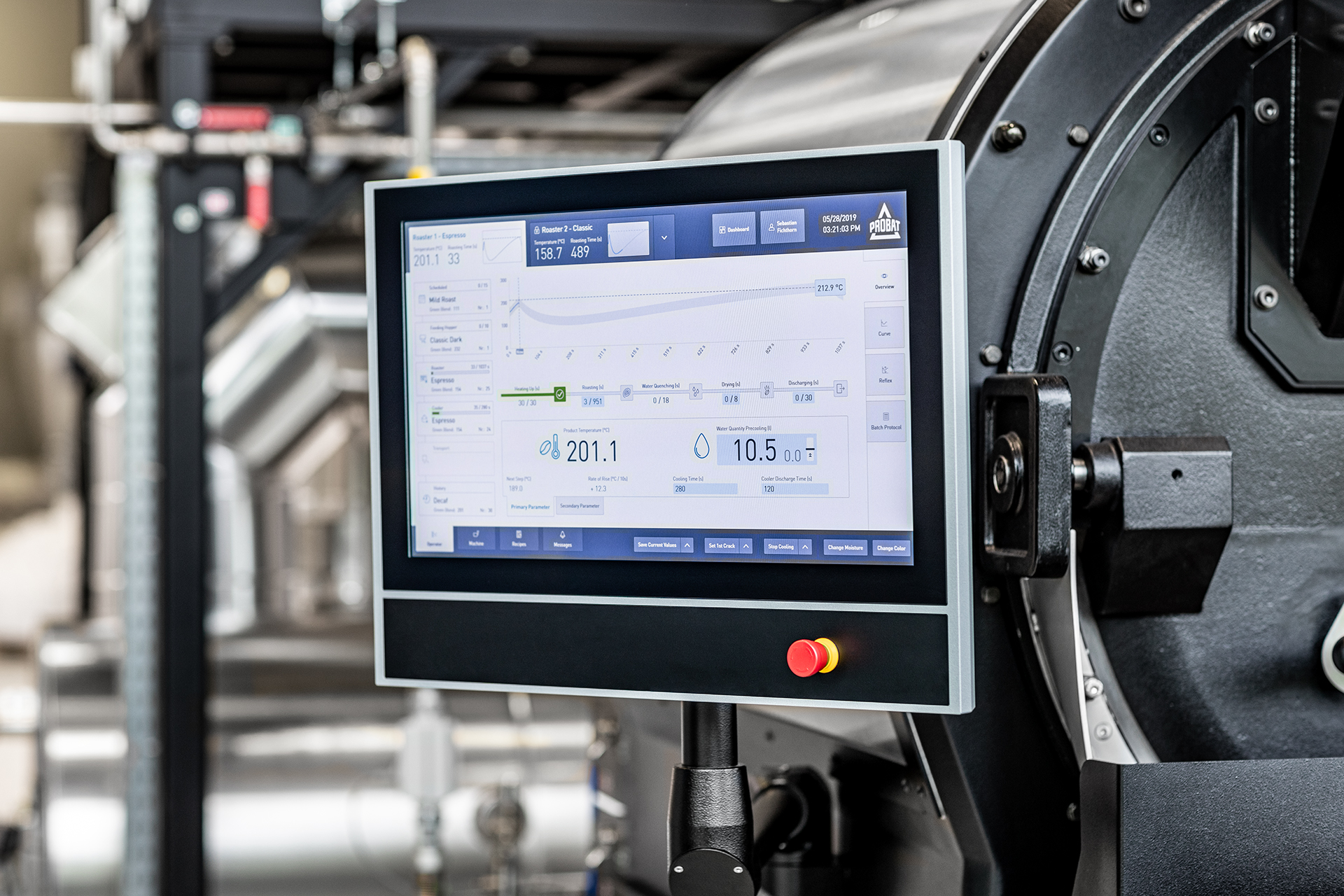

The Px 120 drum roaster is equipped with the PILOT Roaster Excellence 2020 control system. It is a web-based application, which features an intuitive HMI, enabling roasters to modify vital roasting parameters by touch. The application is programmed using modern web technologies, which allow access from different devices and operating systems.

Fully automatic control system
New touch-optimized HMI with intuitive user guidance
Recipe management with flexibly definable recipes; settings that have been saved are reproduced safely and automatically
Reflex Automatic function: reproducibility of roasting profiles by eliminating external influences such as varying batch sizes, green coffee moisture or ambient temperature
Overview of all key roasting parameters and temperature curves
All data relevant to production are saved, allowing it to be accessed and analyzed at any time
Transparent presentation of the system’s operating status in real time
Web-based application which allows access from different devices and operating systems

Environment and Cost-Effectiveness

Different PROBAT systems make it possible to clean and reuse the thermal energy released during the roasting process. They are specifically tailored to the respective roasting process.

Energy savings through partial recirculation of roasting exhaust air
Energy savings and increased production through green coffee preheating (optional)
Reduction of product-specific odors and visible roasting exhaust gases
Reduction of emissions and adherence to local thresholds through modular exhaust air treatment systems
Maximum cleaning efficiency thanks to the Proforte exhaust air treatment system (flameless, renewable, thermal oxidation)
Energy monitoring for cost transparency
Heat recovery through use of heat exchangers
Minimal heat loss due to particularly well insulated roasting system
Thermal cleaning cuts human resource costs and saves time
